GTW9A Torin Drive Traction Motor | Elevator Traction Motor
Model: GTW9A
Specifications:
| Feature | Specification |
|---|---|
| Speed Range | 1.0–2.0 m/s |
| Load | 800–1250 kg |
| Power Range | 9.9–16.3 kW |
| Weight | 350KG |
| IP Code | IP41 |
| Rating | S5 (40%) |
| INS. Class | F |
Product Details
GTW9A Torin Drive Traction Motor | Elevator Traction Motor
TorinDrive GTW9A Traction Machine is the high-efficiency electric motor that directly drives the elevator’s sheave (pulley), moving steel cables to transport the elevator car and counterweight with precision. Engineered as a gearless Permanent Magnet Synchronous Motor (PMSM), it eliminates mechanical friction, reduces energy consumption by up to 40%, and ensures whisper-quiet operation (<50 dB) for residential and high-rise buildings.
Specifications:
| Feature | Specification |
|---|---|
| Speed Range | 1.0–2.0 m/s |
| Load | 800–1250 kg |
| Power Range | 9.9–16.3 kW |
| Weight | 350KG |
| IP Code | IP41 |
| Rating | S5 (40%) |
| INS. Class | F |

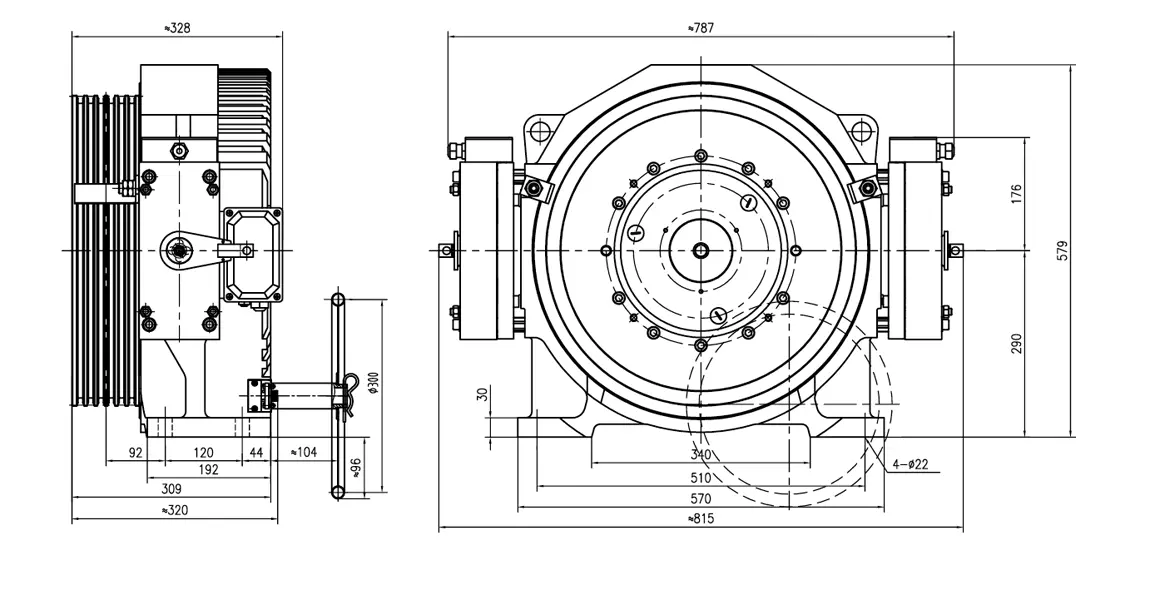

Dimensions:

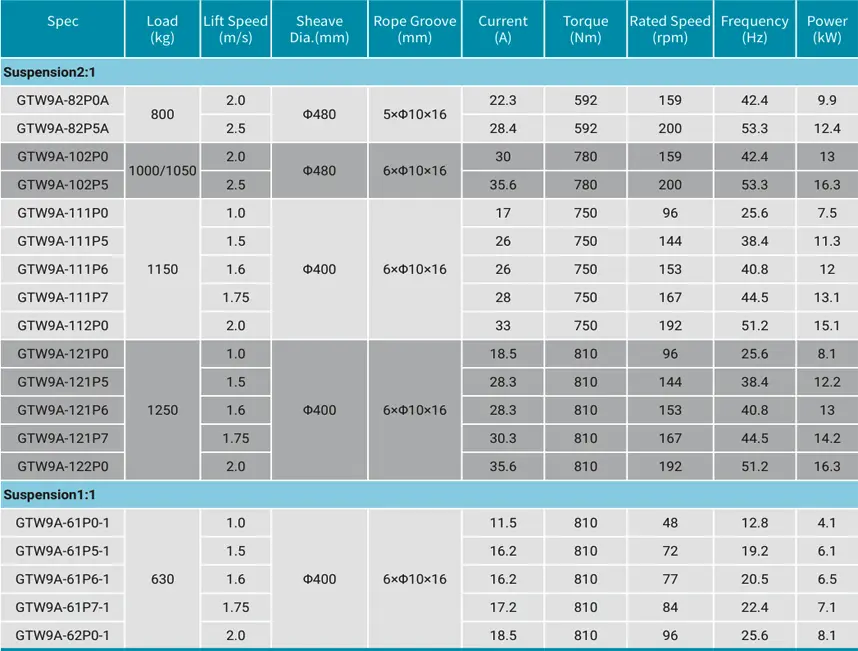

Technical Data:
