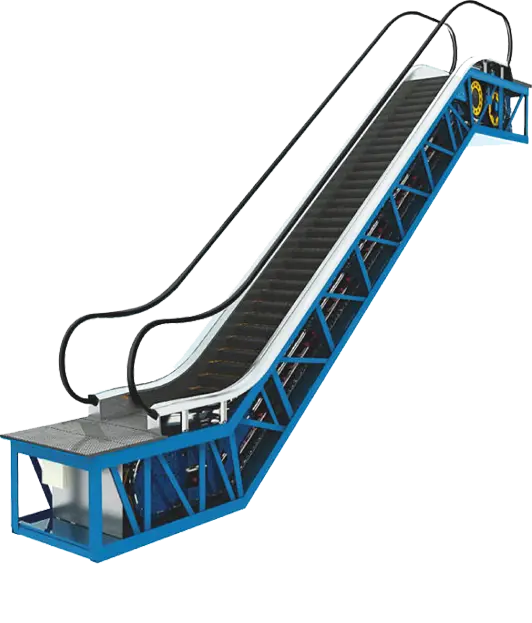

HAYASHIMU Commercial Escalators

Model: HE-E01

Parameter	Specification
Max Vertical Rise	18 m (Standard), 25 m (Custom)
Width	1000 mm (Double Lane)
Speed	0.5 m/s (Standard), 0.75 m/s (High-Flow)
Incline	30° (Standard), 35° (Compact)
Capacity	12,000 pax/hour @ 0.75 m/s
Drive System	Regenerative Gearless (IP55-rated)
Energy Use	3.8 kW/12m rise (Avg. load)
Compliance	EN 115:2017, ASME A17.1, ADA, ISO 14798

Catalog Send Inquiry

Product Details

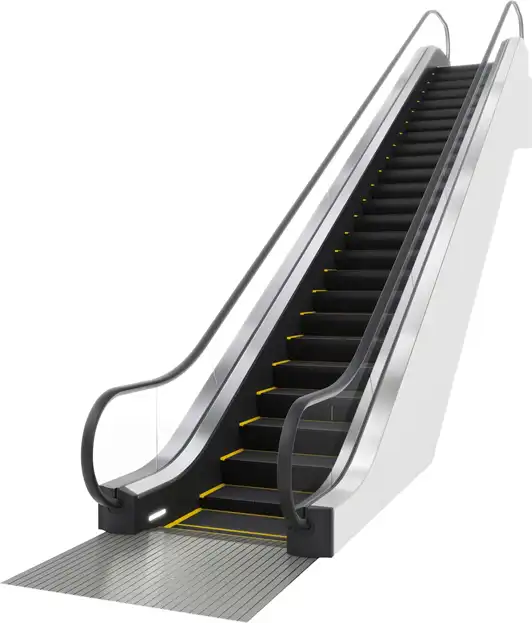

HAYASHIMU Commercial Escalators

Modern escalators are engineered for high-volume vertical transportation, efficiently moving people across levels in commercial buildings, airports, metro stations, and shopping centers. As critical elevator components in urban infrastructure, they reduce congestion while enhancing accessibility in high-rise buildings and public spaces.

Precision Engineering for Mass Transit

Unmatched Capacity: Handles 10,000+ passengers/hour with widths of 600 mm (single) or 1,000 mm (double lane)
Adaptive Configurations:
- Standard 30° incline (up to 18 m vertical rise)
- Compact 35° models for space-constrained sites
- Curved designs for architectural integration
Drive Technology:
- Gearless Motors: Regenerative VVVF drives cut energy consumption by 40% vs. geared systems
- Decentralized drives (1 per 12 m rise)
Durable Step Systems:
- Forged steel step chains (200,000+ hour lifespan)
- Anti-slip rubber/composite treads
- Zero-insertion combs at entry/exit
Safety & Compliance:
- Skirt brush sensors & emergency stop buttons
- Handrail speed synchronization (±0.1 m/s)
- EN 115:2017 / ASME A17.1 certified

Model Spotlight: Atlas Series Heavy-Duty Escalator

Parameter	Specification
Max Vertical Rise	18 m (Standard), 25 m (Custom)
Width	1000 mm (Double Lane)
Speed	0.5 m/s (Standard), 0.75 m/s (High-Flow)
Incline	30° (Standard), 35° (Compact)
Capacity	12,000 pax/hour @ 0.75 m/s
Drive System	Regenerative Gearless (IP55-rated)
Energy Use	3.8 kW/12m rise (Avg. load)
Compliance	EN 115:2017, ASME A17.1, ADA, ISO 14798

Critical Applications

Shopping Malls: Connect retail floors in multi-level commercial buildings
Airport Terminals: Bridge gates/checkpoints (e.g., Heathrow T5, Incheon Int'l)
Metro Systems: High-volume vertical movement in underground stations
Stadiums/Arenas: Efficient crowd dispersal
Hospital Complexes: Link outpatient wings & parking
Corporate Campuses: Connect towers in high-rise buildings

Industrial-Grade Components

Cold-drawn steel trusses (20% thicker vs. standard)
Sealed step chain rollers (lubrication-free for 5+ years)
Fail-safe electromagnetic brakes
UV-resistant moving handrails
IoT-enabled predictive maintenance sensors

Energy-Smart Operation
• Regenerative drives recover 30% braking energy
• Sleep mode during low-traffic hours
• LED step-edge lighting (0.3W/step)
• Load-adaptive speed control

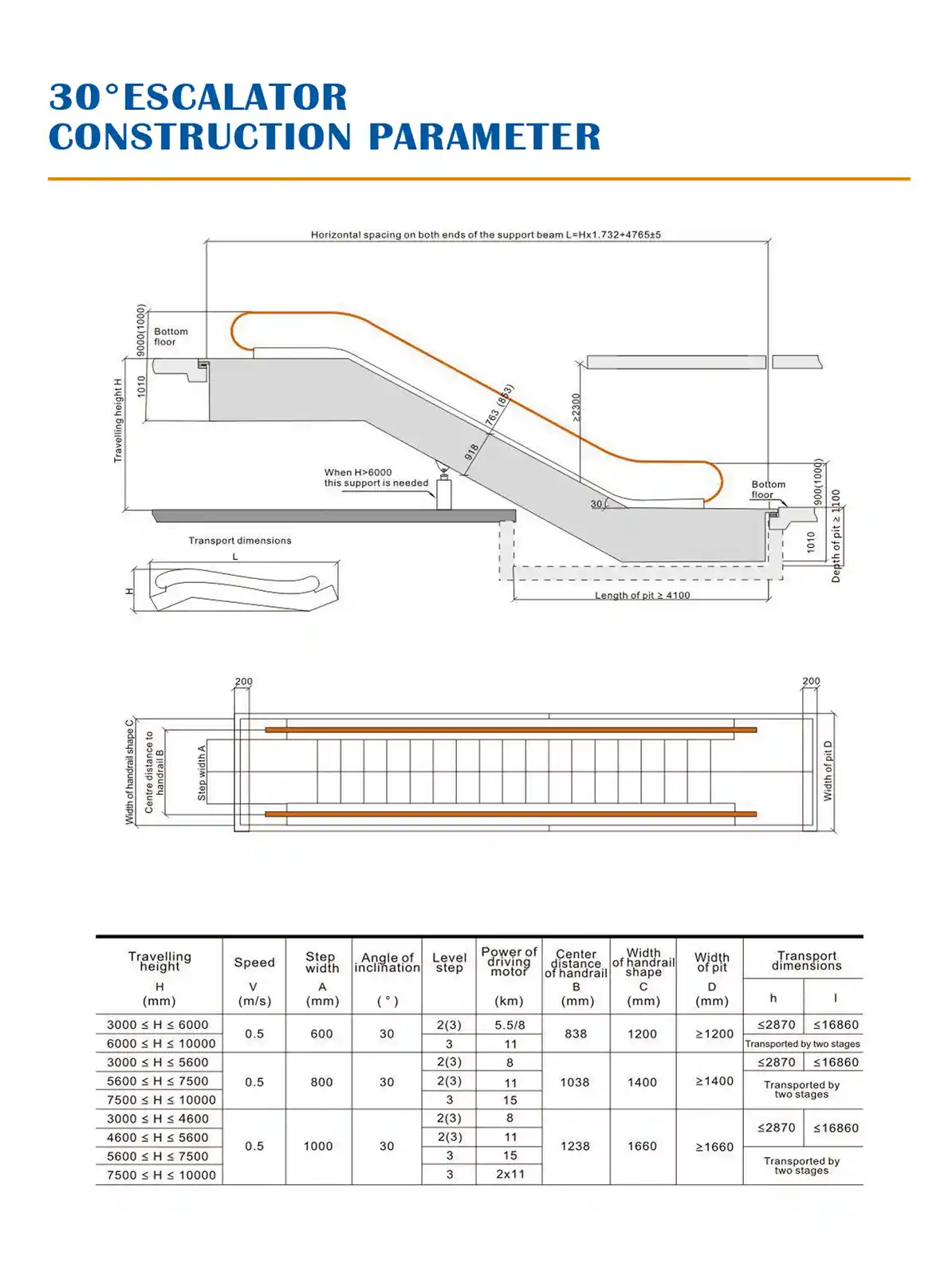

Drawings & Parameters:
